Combination of EnOcean Gateway and PLC



Discover our cost-efficient control solution for intelligent building automation at the highest level.

EnOcean Header

This innovative solution not only offers all the features of a CODESYS PLC with integrated sensors, but also access to the fascinating world of EnOcean, making the conventional gateway obsolete.

Unique connectivity, remote access and a PLC that is characterized by its openness and flexibility guarantee you safety, efficiency and a high level of user comfort.

Control lighting, heating, security and more with our maintenance-free and quick-to-install solutions that help you make buildings more energy efficient and sustainable.

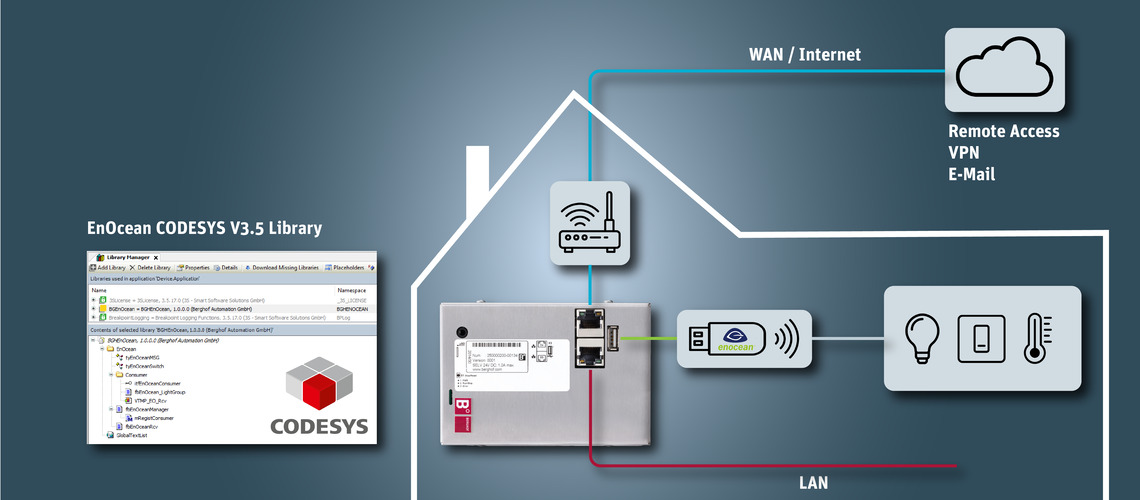

EnOcean System

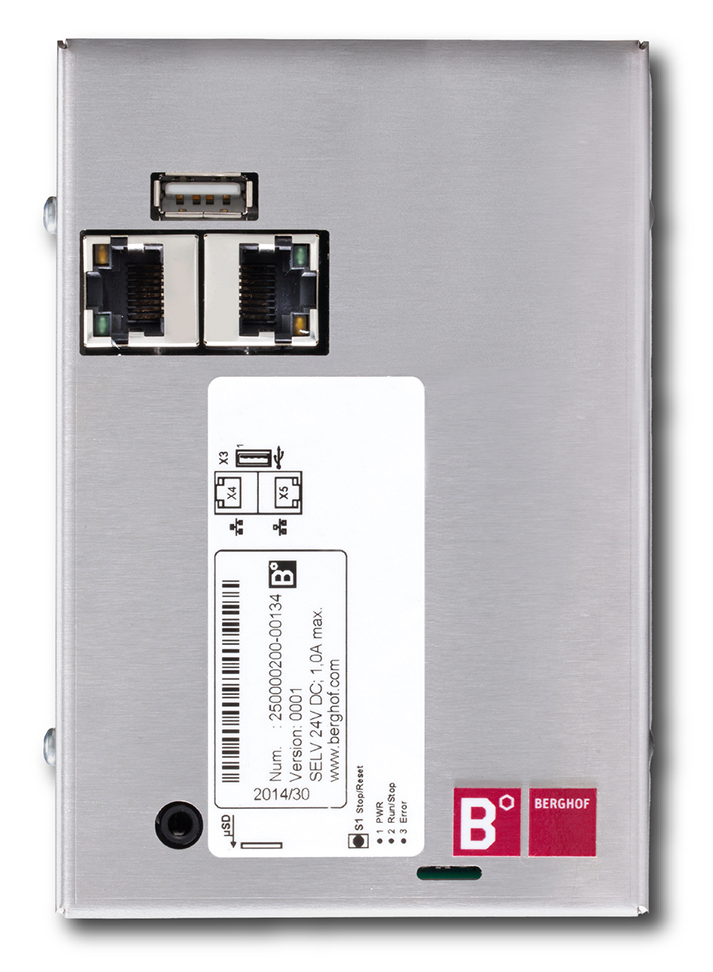

The CC-Slim EnOcean Gateway comes with all relevant protocols for building automation: KNX, Modbus, OPC UA and BACnet, as well as the option of remote access and convenient access via a web interface.

Further features at a glance

  • Remanent hardware memory independent of the battery
  • Integrated temperature sensor monitoring
  • Isolated interfaces
  • Control buttons for resetting / stopping / starting the PLC application
  • Two-stage external HW watchdog
  • Operating hours counter

Technical data

AusführungCC-Slim S01
Order numberS-01020102-0100
Development environmentCODESYS V3 (IEC 61131-3)
CPU800 MHz ARM® CPU Cortex™- A9
RAM / Flash / Retain256 MB RAM / 256 MB Flash / 100 kB Retain
CertificationCE (EN 61131-2) / cULus (UL 61010-2-201)
Communication interfaces1x Ethernet, 10/100 Base, RJ45
1x EtherCAT, RJ45
ProtocolsStandard: EtherCAT Master, NTP, FTP
Optional: SNMP, OPCuA, Ethernet/IP, PROFINET, BACnet, KNX, IoT
VisualizationTarget Visu (VNC-Server) optional CODESYS WebVisu (Web Server, HTML 5)
Other functions and additional memory1x host USB 2.0 / USB-plug type A
1x Real-Time Clock, battery-buffered
1x MicroSD Card Slot
